Solid insulation cabinet

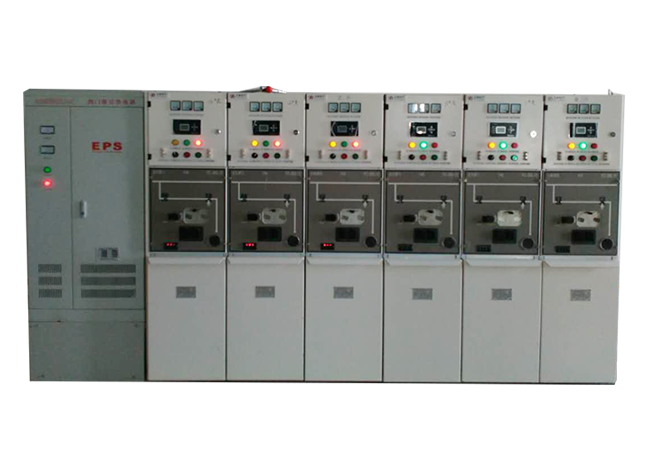

Solid insulation cabinet

My company's production of solid insulation cabinet voltage level 10kV, the maximum current 1250A, with circuit breaker program, load switch and combination of electrical solutions, with an electric program and remote control interface. The shell is made of galvanized plate forming, insulation parts adopt international quality insulation material produced. There are a number of prominent features:

成功应用案例 +

资质证书

Product description

My company's production of solid insulation cabinet voltage level 10kV, the maximum current 1250A, with circuit breaker program, load switch and combination of electrical solutions, with an electric program and remote control interface. The shell is made of galvanized plate forming, insulation parts adopt international quality insulation material produced. There are a number of prominent features:

1) full insulation full seal.

2) the product for the national network finalists products.

3) Shenyang switching station network selection standard products.

4) the maximum current 1250A, can be with the isolation switch function, there are visible fracture.

5) products for the main air insulation, there is no risk of gas leakage, can be maintained for twenty years without maintenance.

6) stable and safe operation.

technical parameter

Serial number

Product technical parameters

Charging cabinet

1

Rated voltage

6KV,12KV

2

Rated current

630A,1250A

3

Mechanical life of circuit breaker (1250A)

10000More times

4

Rated short circuit breaking current

25KA

5

Circuit resistance (1250A)

Less than 40 micro ohm

6

Using circuit breaker form

Fixed type

7

Environment (limit temperature)

-35℃

8

Contamination level

Dust and maintenance free type
