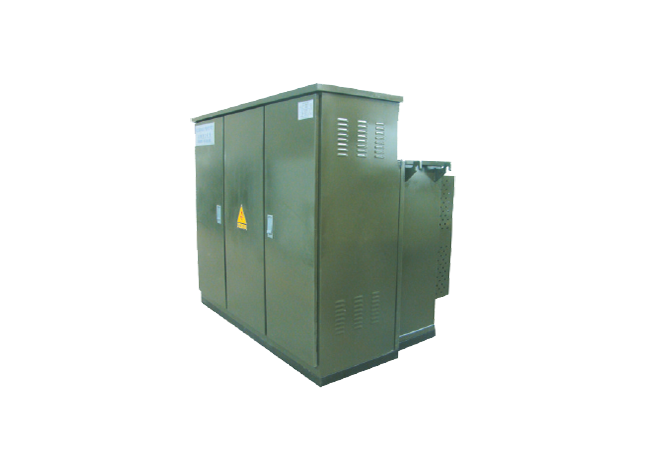

American box change

American box change

I produced the American box transformer voltage level 6KV, 10kV. Beauty is mainly composed of three parts, the transformer body, low-voltage switchgear and a casing, casing material is divided into: stainless steel plate, common plate, galvanized plate material. The transformer body is composed of a high voltage load switch, high voltage fuse plug, power supply scheme for oil immersed transformer. There are a number of prominent features:

成功应用案例 +

资质证书

Product description

I produced the American box transformer voltage level 6KV, 10kV. Beauty is mainly composed of three parts, the transformer body, low-voltage switchgear and a casing, casing material is divided into: stainless steel plate, common plate, galvanized plate material. The transformer body is composed of a high voltage load switch, high voltage fuse plug, power supply scheme for oil immersed transformer. There are a number of prominent features:

1) using corrugated fin structure design.

2) switch cabinet level 0K.

3) shell with high strength, strong ability to cover rain, rain proof lock anti-theft padlock.

4) ontology can be used in the design of common box or sub box design.

5) standard colors for the army green and sea grey.

6) is divided into the terminal type and the ring network structure, high pressure for the whole insulation of the whole sealing structure.

7) stable and safe operation.

8) the product has a network of companies to prove.



technical parameter:

Serial number

Product technical parameters

American box change

1

Rated voltage

6KV,12KV

2

Rated capacity

1600KVAfollowing

3

Shell level

0Klevel

4

Low voltage measurement

Anti theft electric function

5

Gel

Ninglu design

6

Low temperature environment (limit temperature)

-35℃

7

Contamination level

Dust and maintenance free type
