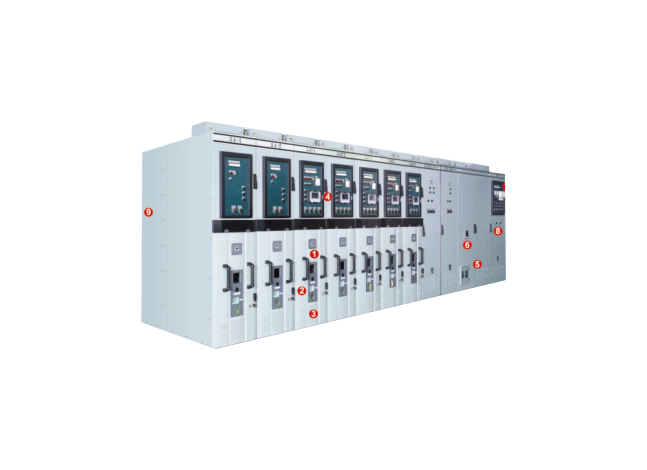

DC switch cabinet

DC switch cabinet

My company production of DC switch cabinet voltage level DC750, DC1500V and maximum current 5000A, mainly used for subway and light rail locomotive main protection function, circuit breaker with permanent magnetic actuator, floor type handcart structure, configuration of integrated protection function. The product is applied to Shenyang Metro Line 1, Metro Line 2. There are a number of prominent features:

成功应用案例 +

资质证书

Product description

My company production of DC switch cabinet voltage level DC750, DC1500V and maximum current 5000A, mainly used for subway and light rail locomotive main protection function, circuit breaker with permanent magnetic actuator, floor type handcart structure, configuration of integrated protection function. The product is applied to Shenyang Metro Line 1, Metro Line 2. There are a number of prominent features:

1) DC circuit breaker with double steady state permanent magnetic actuator.

2) circuit breaker using hand cart type anti false operation structure.

3) small current breaking capacity, high current switching stability.

4) stable and safe operation.

technical parameter

Serial number

Product technical parameters

DC switch cabinet

1

Rated voltage

DC750V,DC1500V

2

Rated current

5000A

3

Mechanical life of circuit breaker (1250A)

10000More times

4

Small current switching

50Afollowing

5

Movement speed

2swithin

6

Using circuit breaker form

Hand cart type

7

Environment (limit temperature)

-25℃

8

Contamination level

Dust and maintenance free type

9

Installation method

Insulation installation
