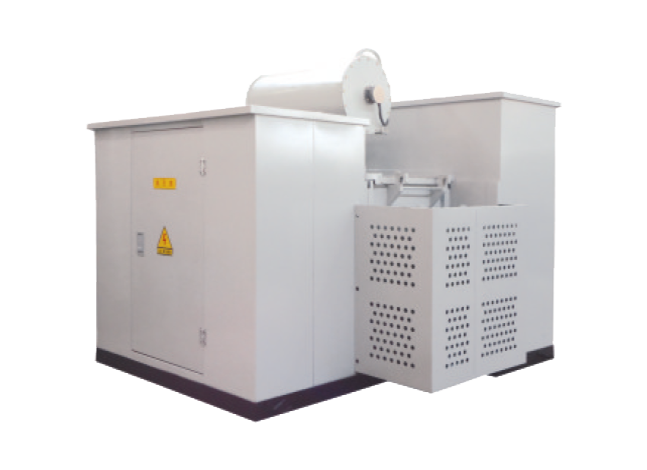

Light volt box change

Light volt box change

My company's production of light volt box is low voltage and high voltage to the power grid box change. Voltage level 10kV, 35KV. Photovoltaic box mainly consists of three parts composition, the transformer body, low-voltage switchgear and a casing, casing material is divided into: stainless steel plate, common plate, galvanized plate material. The transformer body is composed of a high voltage load switch, high voltage fuse plug, power supply scheme for oil immersed transformer. There are a number of prominent features

成功应用案例 +

资质证书

Product description

My company's production of light volt box is low voltage and high voltage to the power grid box change. Voltage level 10kV, 35KV. Photovoltaic box mainly consists of three parts composition, the transformer body, low-voltage switchgear and a casing, casing material is divided into: stainless steel plate, common plate, galvanized plate material. The transformer body is composed of a high voltage load switch, high voltage fuse plug, power supply scheme for oil immersed transformer. There are a number of prominent features:

1) the structure design of chip heat sink.

2) switch cabinet level 0K.

3) shell with high strength, strong ability to cover rain, rain proof lock anti-theft padlock.

4) ontology can be used in the design of common box or sub box design.

5) standard colors for the army green and sea grey.

6) high voltage using air insulated into the line.

7) stable and safe operation.

8) the product has a large number of market performance, running a number of more than 3000 units.

technical parameter

Serial number

Product technical parameters

光伏箱变

1

Rated voltage

12KV,35KV

2

Rated capacity

3150KVAfollowing

3

Shell level

0Klevel

4

Low voltage measurement

Anti theft electric function

5

Gel

Ninglu design

6

Low temperature environment (limit temperature)

-35℃

7

Contamination level

Dust and maintenance free type
