Low voltage cabinet -GCK

GCK low-voltage AC switchgear conforms to the GB7251.1\JB/T9661\IEC439-1 standard requirements, suitable for rated voltage 380~660V, 50 ~ 60Hz AC three-phase power system, as a distribution, motor control and reactive power compensation, according to the different needs can be designed into a drawer type and fixed type hybrid system, the indoor use.

Success Case +

中国人民解放军66296(新华区友谊北大街70号)小区居民用电新建 石家庄金正房地产开发有限公司(桥东区)小区居民用电新建 石家庄市桥西区住房保障局(红河小区)小区居民用电新建工程 石家庄鸿名发地产开发有限公司(翟营大街西跃进路南金刚生活区) 河北宇辰房地产开发有限公司(1#地块、2#地块、回迁区)小区居民 河北保利房地产开发有限公司(保利花园E区)小区居民用户新建工 张承承德段机电六标段-平顶山 沈阳公用国际酒店新建10KV变电所 恒基碧桂园金石滩小区供电工程 北京金地惠达房地产房山区长阳镇理工大学站3号地、5号地项目 国家玉米、小麦品种标准样品库及区域试验站科研楼工程 华晨宝马汽车有限公司发动机工厂铸造车间机电施工总承包 宁夏石嘴山惠农100MW并网光伏发电项目 交通银行股份有限公司辽宁省分行办公楼配电 10KV沈阳市第二热力高官台锅炉变电所新建工程 河北华石石家庄热电有限公司4*410t/h锅炉脱硝改造工程 彰武五洲丰肥料有限公司(二期)10KV电源工程 。。。

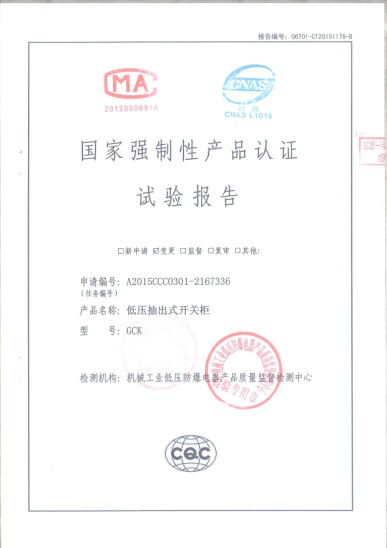

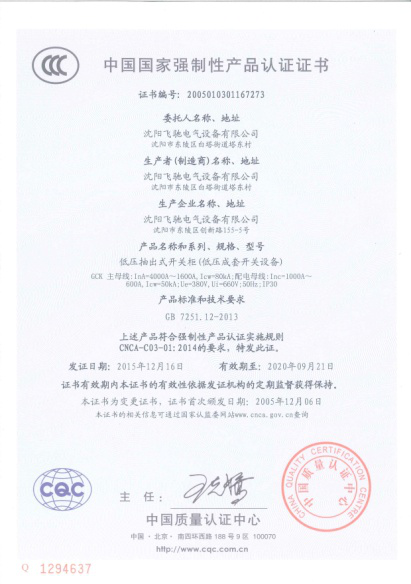

Certifications

Product description

GCK low-voltage AC switchgear conforms to the GB7251.1\JB/T9661\IEC439-1 standard requirements, suitable for rated voltage 380~660V, 50 ~ 60Hz AC three-phase power system, as a distribution, motor control and reactive power compensation, according to the different needs can be designed into a drawer type and fixed type hybrid system, the indoor use.

technical parameter

Main circuit rated voltage V Exchange 380, 660
Auxiliary circuit rated voltage V AC 220, 380 DC 110, 220
Rated frequency HZ 50(60)
Rated insulation voltage V 660(1000)
Rated current A ≤5000
Rated current of vertical busbar A 630、1000
Short time withstand current of horizontal bus KA/Is 50、80、100
Peak withstand current of horizontal busbar KA/Is 105、176、220
Power frequency test V/min Main circuit 2500
Auxiliary circuit 1760
a bus or bus bar Three-phase four wire system A、B、C、PEN
Three-phase five wire system A、B、C、N、PE
The main circuit connector A 250、400
The control circuit of A connector 10、20
    IP30、IP40
