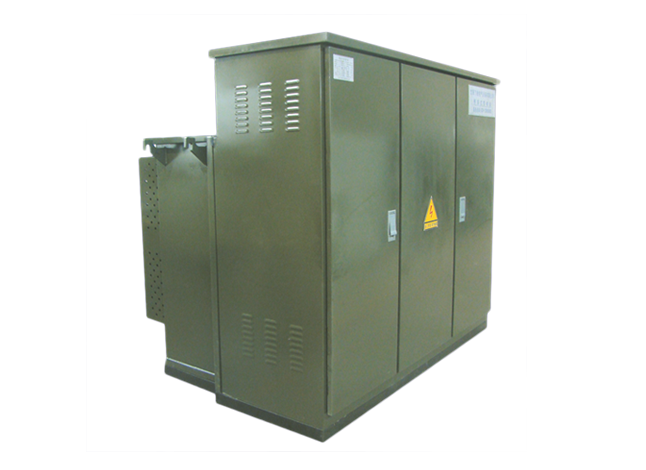

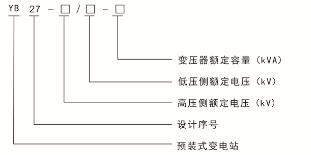

YB27 pre installed substation is the domestic transformation of the American box transformer substation. Since the successful development of the development, speeding to build an American box changed, the product of the national market share of the first. As an important power supply unit in the cable distribution network, it is widely used in the urban and rural distribution network with high voltage control, protection, substation and power distribution equipment.
